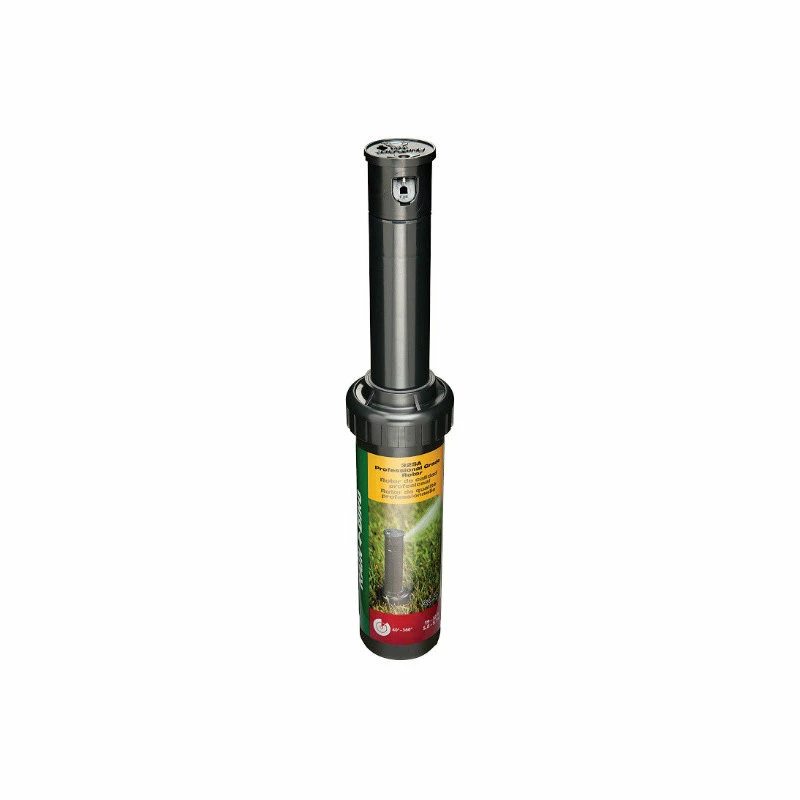

Rainbird Rain Bird® 32SA Simple Adjust Pop Up Gear Driven Rotor Sprinkler, 1/2″ Inlet

The 32SA Simple Adjust Rotor is an intuitive short to mid-range 1/2 in. gear-drive rotor, offering value and convenience for residential applications. The protected closed-case design makes these sprinklers ideal for “creeping” grasses, sandy soil and other harsh surroundings. Water lubricated rotating stream operation is quiet and maintenance free. The many safeguards and trouble-free features built into our closed-case rotor sprinklers make them the perfect choice for any home landscape.

• Top-adjust arc adjustment requiring only a flat-bladed screwdriver
• This rotor comes with a pre-installed 3.0 Rain Curtain™ nozzle
• Nozzle removal feature and easily removable filter screen makes maintenance very simple
• Water-lubricated gear-driven design for durable, reliable operation
• 40 – 360° Part-circle arc rotation and reversing full-circle rotation in one
• Radius adjustment screw allows up to 35% radius reduction without changing nozzles
• True 4″ (10,2cm) pop-up (measured from center of nozzle)
• Quick Check Arc/Fast Forward
• Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
• Self-adjusting stator does not require replacement when changing nozzles
• Easily removable filter screen

Nozzle removal feature

• Arc setting factory preset at 180° for installation convenience.

Specifications

• Rotor Series: 32SA
• Coverage Radius: 19-32′

*Inlet: 1/2″

• Features: Gear Drive, Rain Curtain Nozzles
• Pop-Up Height: 4″

*Coverage Arc: 40° – 360° Reversing Full and Part-Circle.
